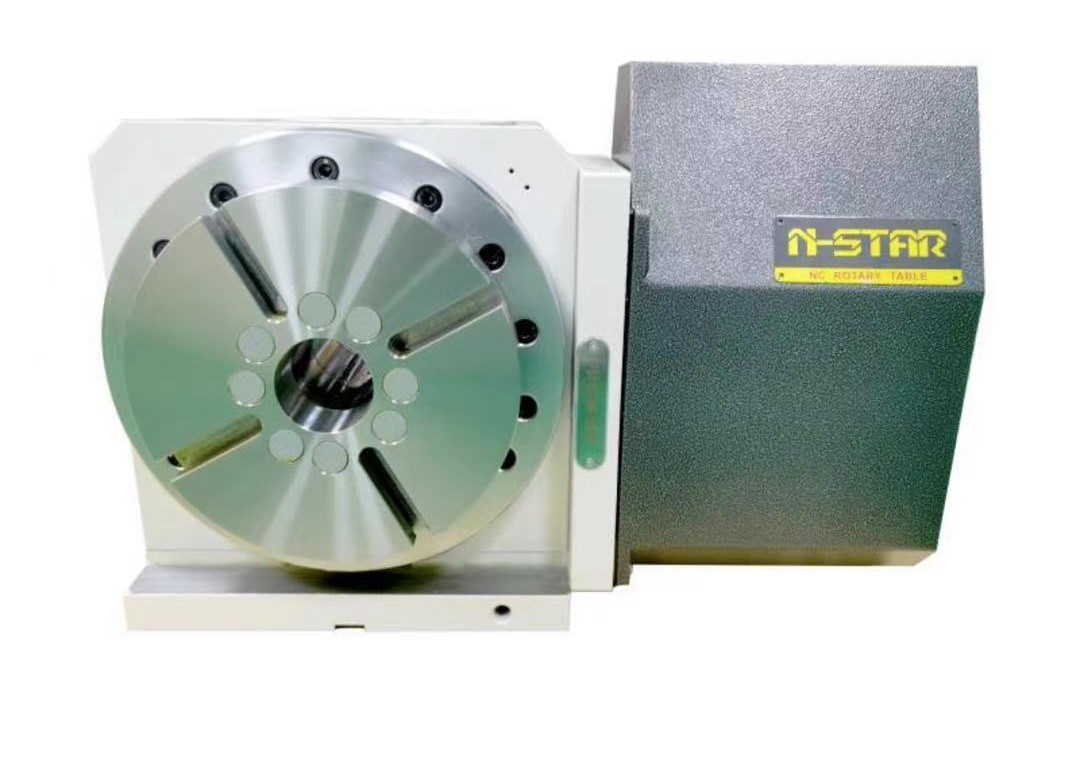

NST-170第四轴(滚子凸轮)
滚子轴承与凸轮曲面完美嵌合 零背隙,高刚性,高效率,免维护
NST-170参数表
规格/型号(Model) | 单位(UNIT) | NST-170 | |
盘面直径 Table diameter | mm | ø170 | |
中心高度 Center height | mm | 135 | |
中心孔直径 Through-hole diameter | mm | 50H7 | |
工作台T型槽宽度 T-solt width of table | mm | 12H7 | |
导块宽度 Width of guide block | mm | 18h7 | |
伺服马达型号 (建议使用) Servo motor modle(Suggest) | 发那科 ( FANUC) | - | aiF4/ßis8 |
三菱 ( MITSUBISHI) | - | HF104 | |
减速比 Speed reduction ratio | - | 1:60/1:40 | |
最高回转数 Max.table speed | rpm | 50/80 | |
90°分度时间 Dividion time | sec. | 0.3 | |
最小设定单位 Min.increment | deg. | 0.001° | |
锁紧方式(油压) Clamping method(oil pressure) | Mpa | 3±0.5 | |
容许切削扭矩 Allowable cut torque | N·m | 300 | |
油压刹车扭矩 Oil pressure brake torque | N·m | 800 | |
分割精度 Lndexing arccuracy | sec. | ±10 | |
重复精度 Repeatability | sec. | 4 | |
最大工件载重 Max.workpiece load capacity | 立式 Vertical | kg | 100 |
卧式 Horizontal | kg | 200 | |
附尾座 With tailstock | kg | 200 | |
容许负荷 Allowable load | F | N | 20750 |
F*L | N·m | 800 | |
F*L | N·m | 1500 | |
产品质量(不含电机) Weight(motor excluded) | kg | 70 |

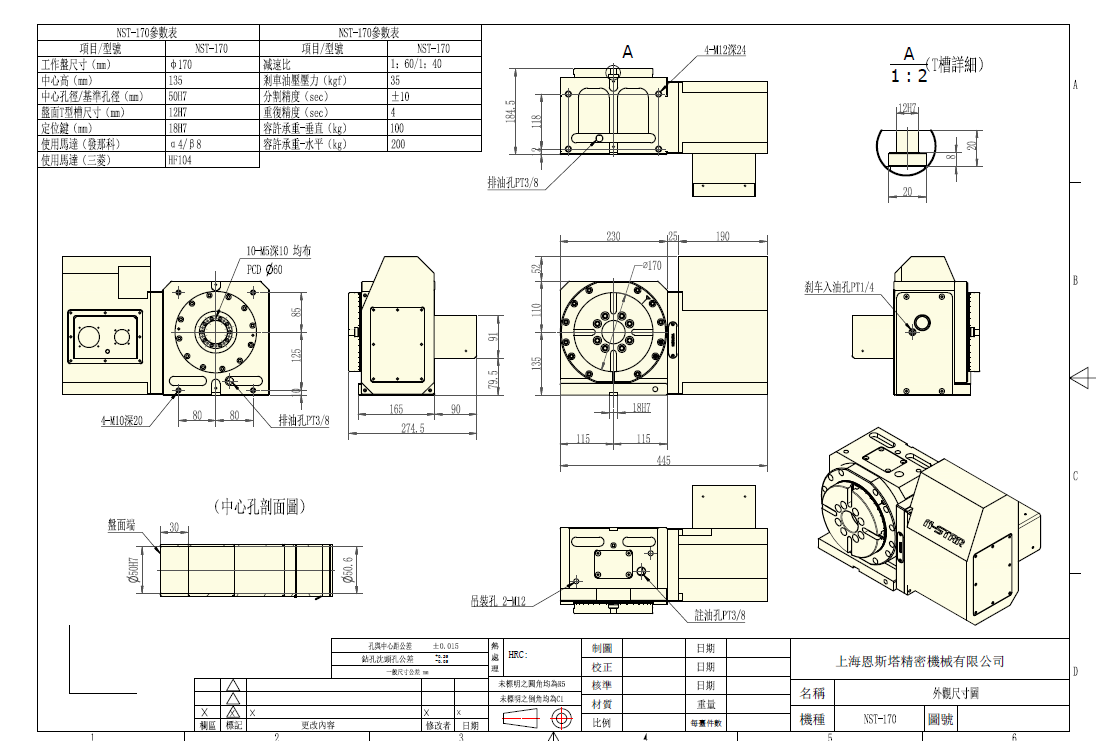

NST-170外形尺寸图
